SR27HD-500W

500w Gearless 27H Magnets electric bicycle conversion hub motor kit

  • Position::Front/Rear
  • Dropout::100mm/135mm/142mm
  • Brake Type::V/Disc brake
  • Rated Voltage::36V/48V
  • Rated Power::500W
  • Max Speed::48km/h
  • Max Torque::78Nm
  • Efficiency::≥ 80%
  • Weight::6kg
  • Wheel Size::20”-29”
  • Spoke Items::36H-12G
  • Freewheel::6-7S / Cassette 8-10S/7S
  • Noise Grade::≤ 60DB
  • IP Grade::IP54
  • Product Details

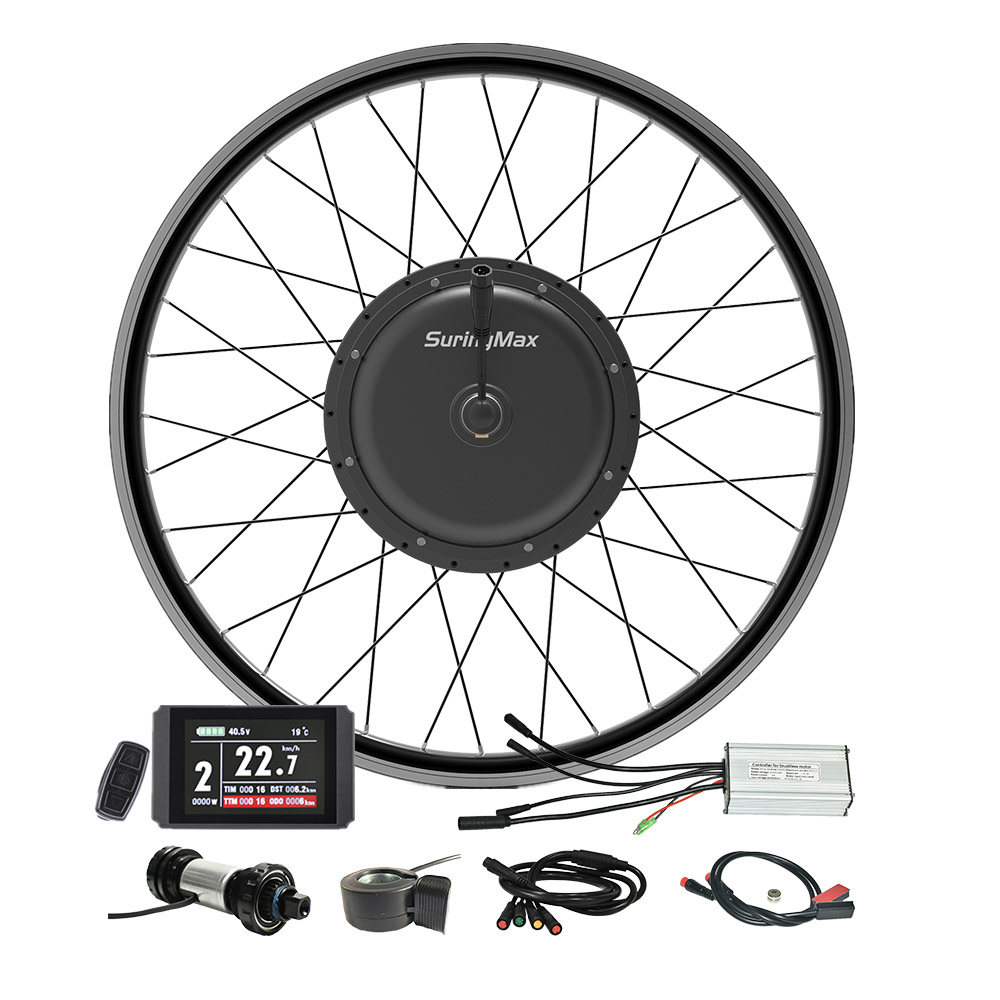

    High load climbing easier delivery E bike 500w rear hub motor cargo tricycle electric bicycle conversion

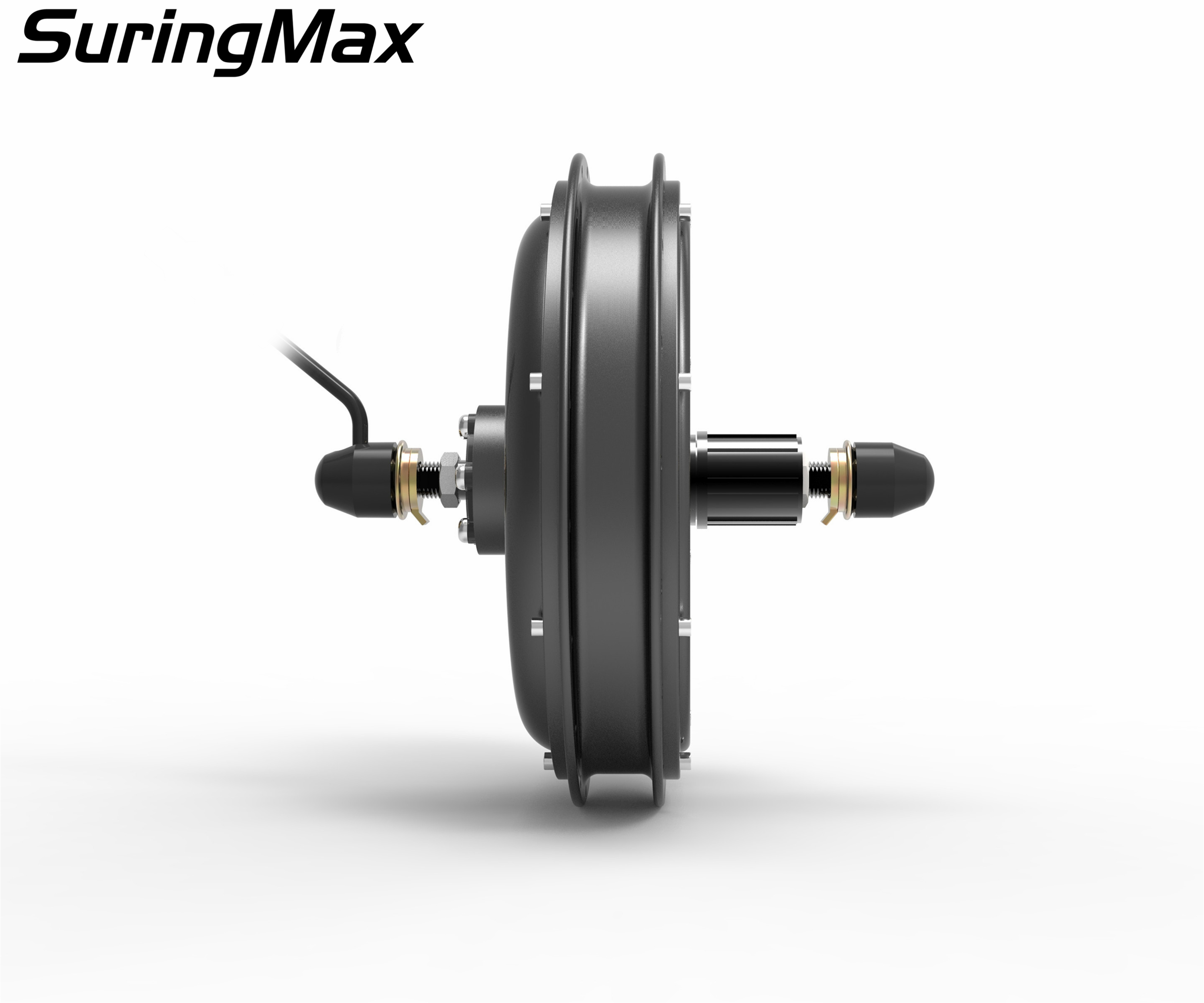

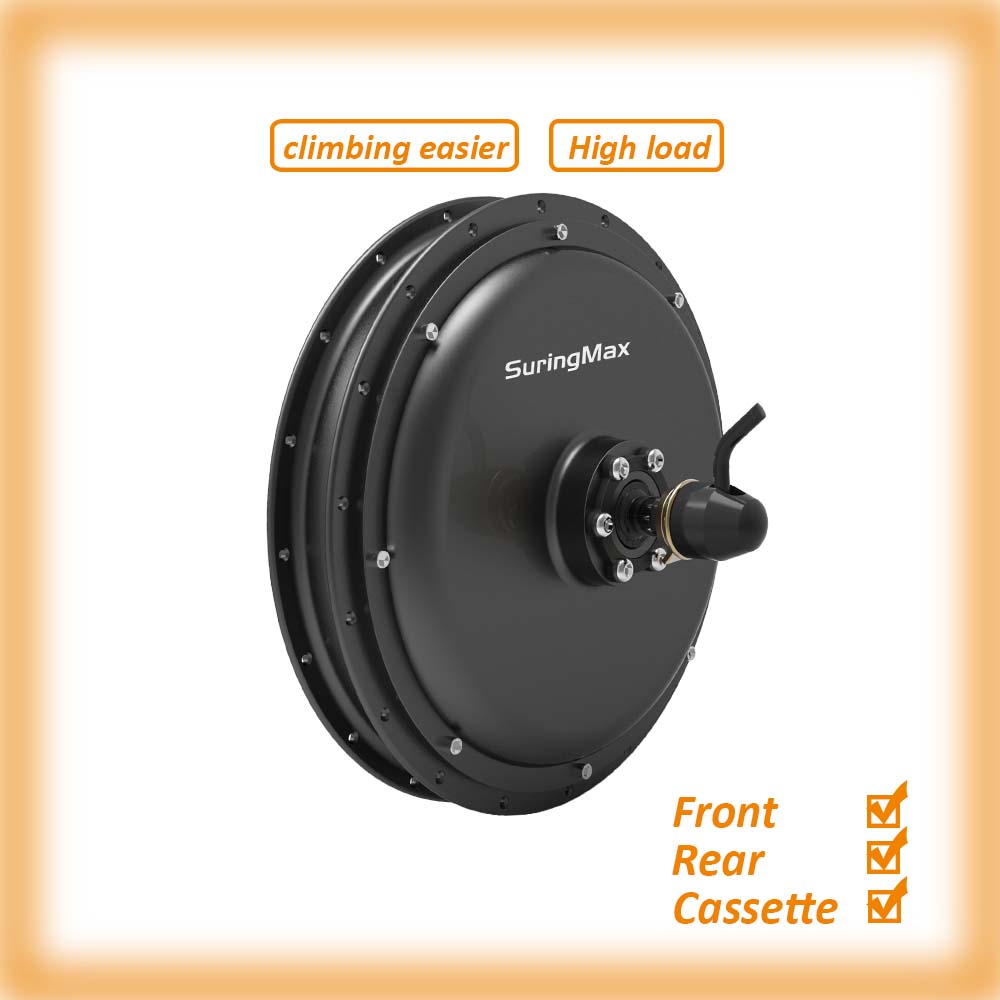

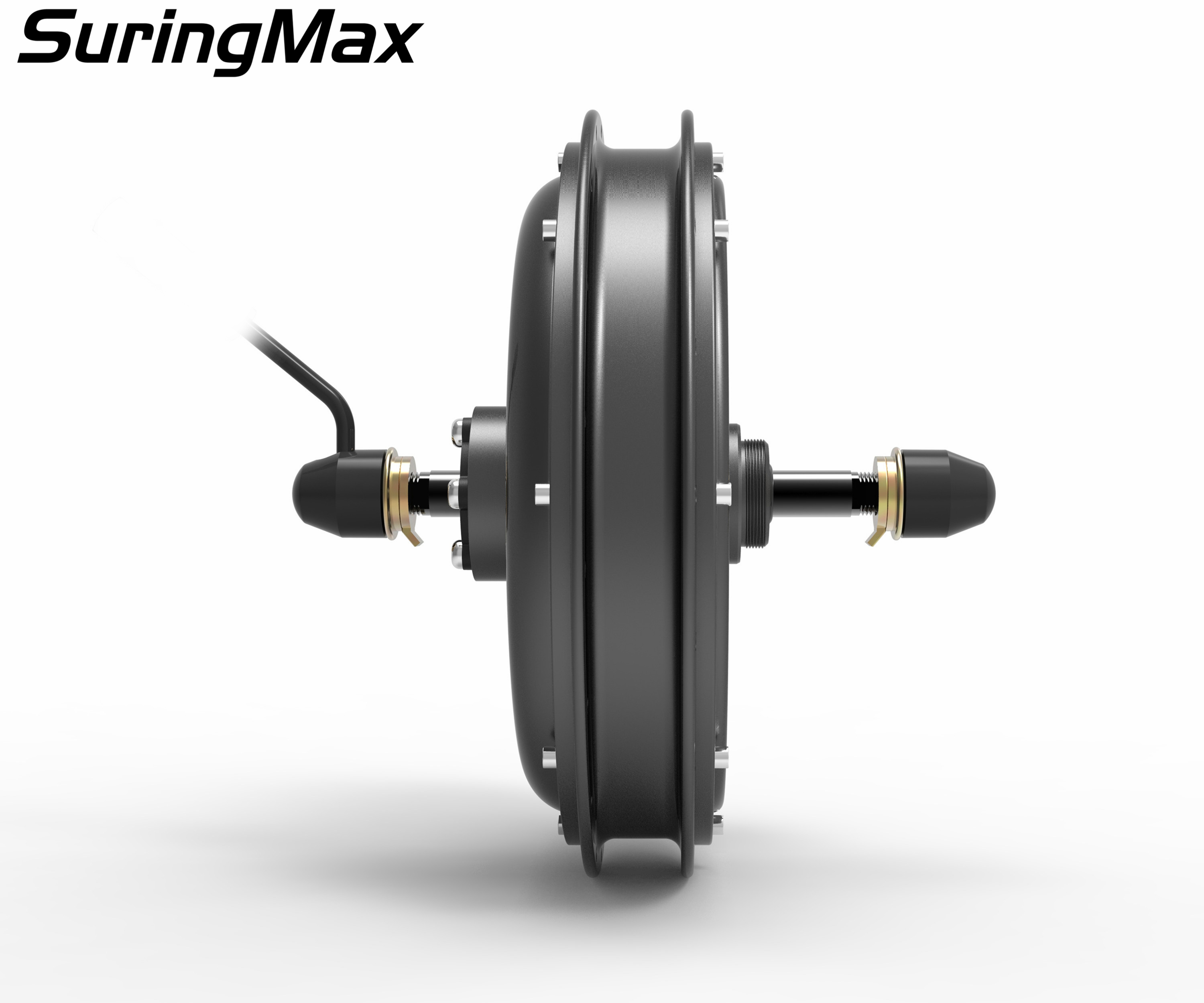

    MOTOR Gearless brushless hub motor, Waterproof 9 pins of motor cable
    Rim20-29'' rim and spokes assemble as default
    Batterylithium-ion battery, All battery including fuse and BMS
    Controller48V/22A 25A standarded square wave or sine wave controller for choose
    PAS8/10/12 magnets PAS, Torque sensor for optional
    DisplayLED /LCD Display for option
    ThrottleThumb throttle/Twist throttle for option
    BrakingE-brakes levers OR E-brake sensor for motor power cut off
