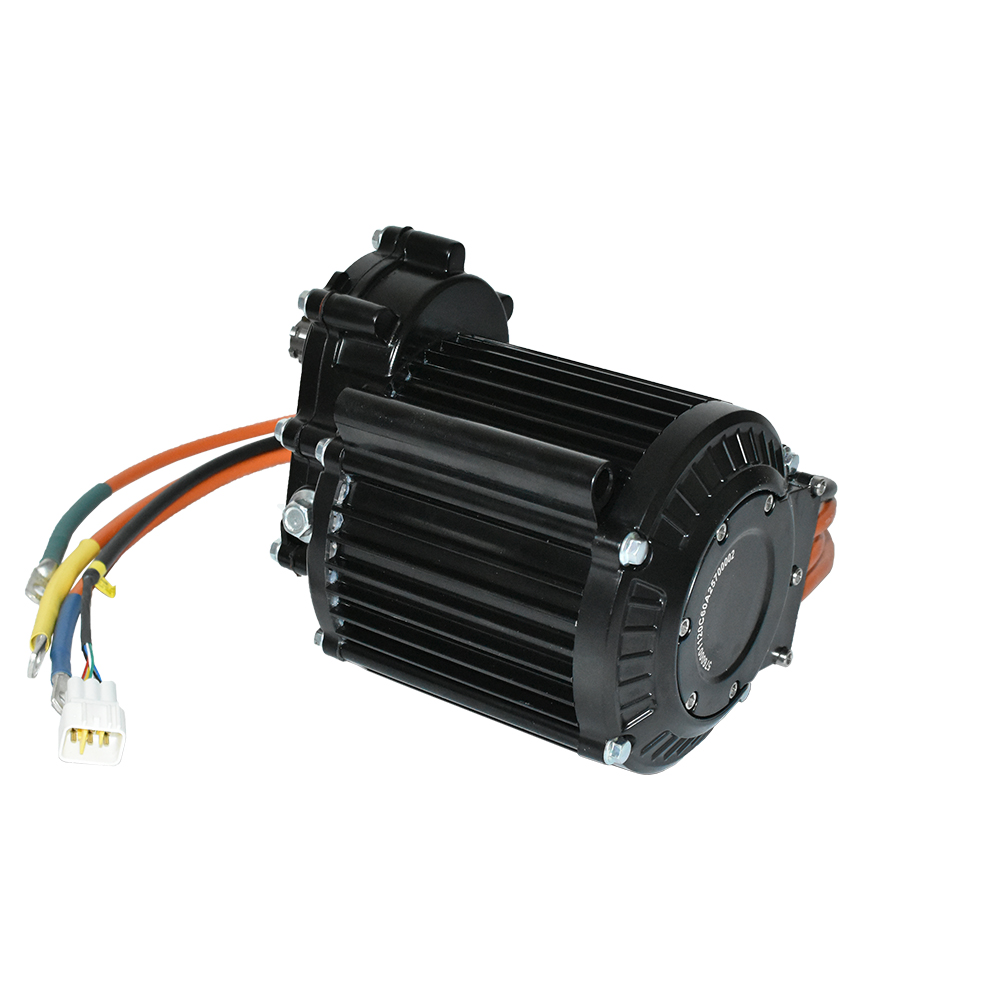

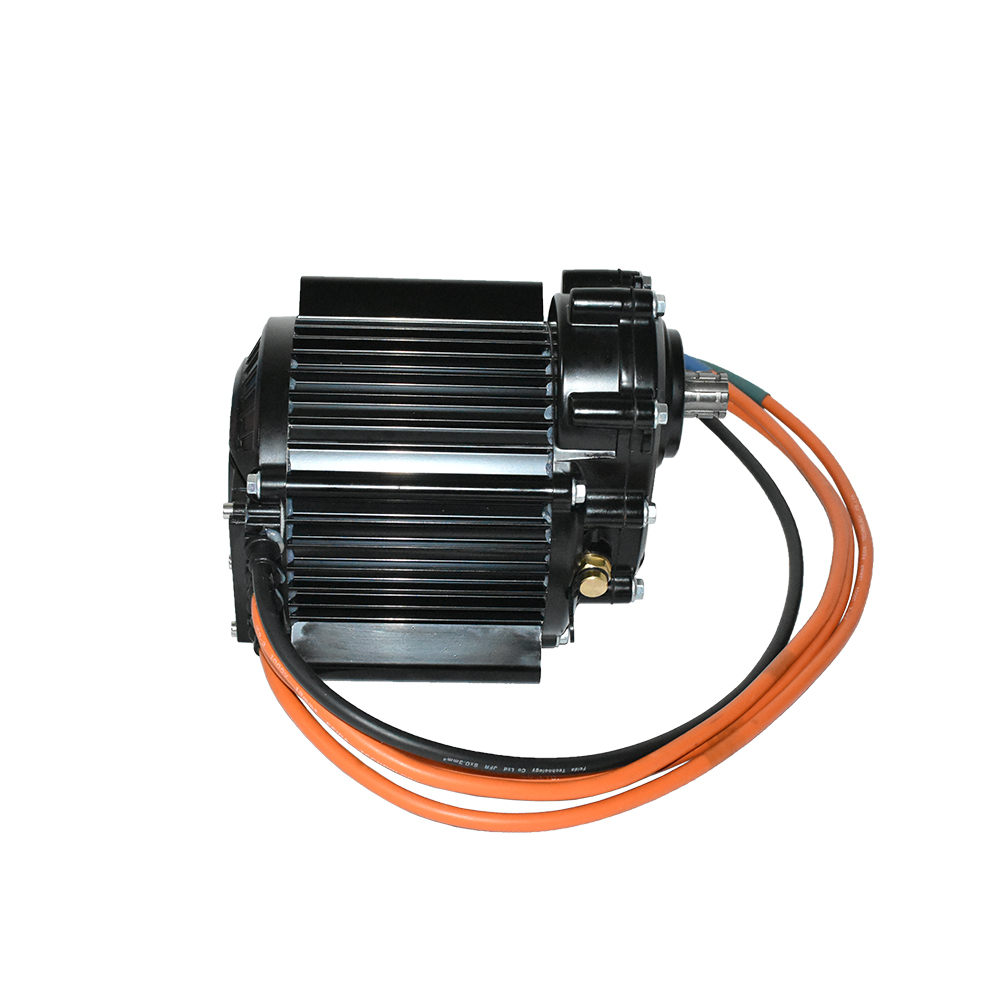

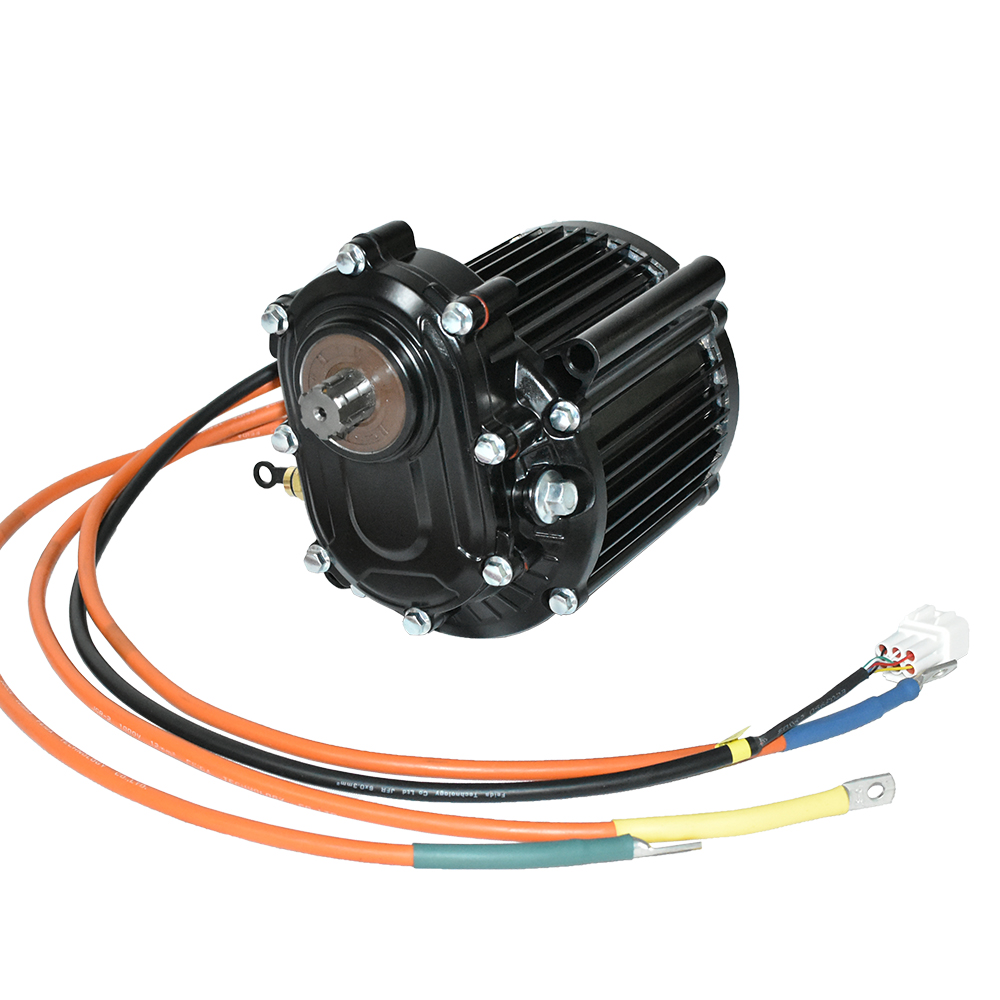

Fulling Motor Bulk Supply CE Approved QS120 2000W 60H V3 Mid Drive PMSM Motor with Internal Gear 1:2.37 for 3-wheel E-vehicle

Rated Power	2000W
Rated Voltage	72V
Max Torque	119.8 N.m
Weight	9kg
Speed	2800rpm
Certification	CE/ROHS/EN 15194

Advantages

* Efficient Power Output: Rated at 2000W, when paired with a reduction gearbox (common reduction ratio 1:2.37), torque is amplified to over 119.8Nm, significantly

improving gradeability (easily handling slopes of 25° or more). Utilizing magnetic weakening technology, the motor supports a maximum speed of 4400rpm,

compatible with a vehicle's top speed of 60-70kph, delivering a balanced balance of power and speed.

* Low Transmission Loss: The integrated design of the reduction gearbox and motor reduces energy loss associated with traditional chain drives. Combined with

permanent magnet synchronous technology, the motor achieves a maximum efficiency of ≥93%, extending driving range by 10%-15% compared to in-wheel

motors of the same power.

* Compact and Durable: Weighing approximately 10.8kg, the compact design facilitates mid-mount installation and lowers the vehicle's center of gravity. The

reduction gearbox utilizes a high-strength gear set tested to 100,000 cycles without failure. With an IP66 protection rating, it withstands rainy, muddy, and other

challenging environments.

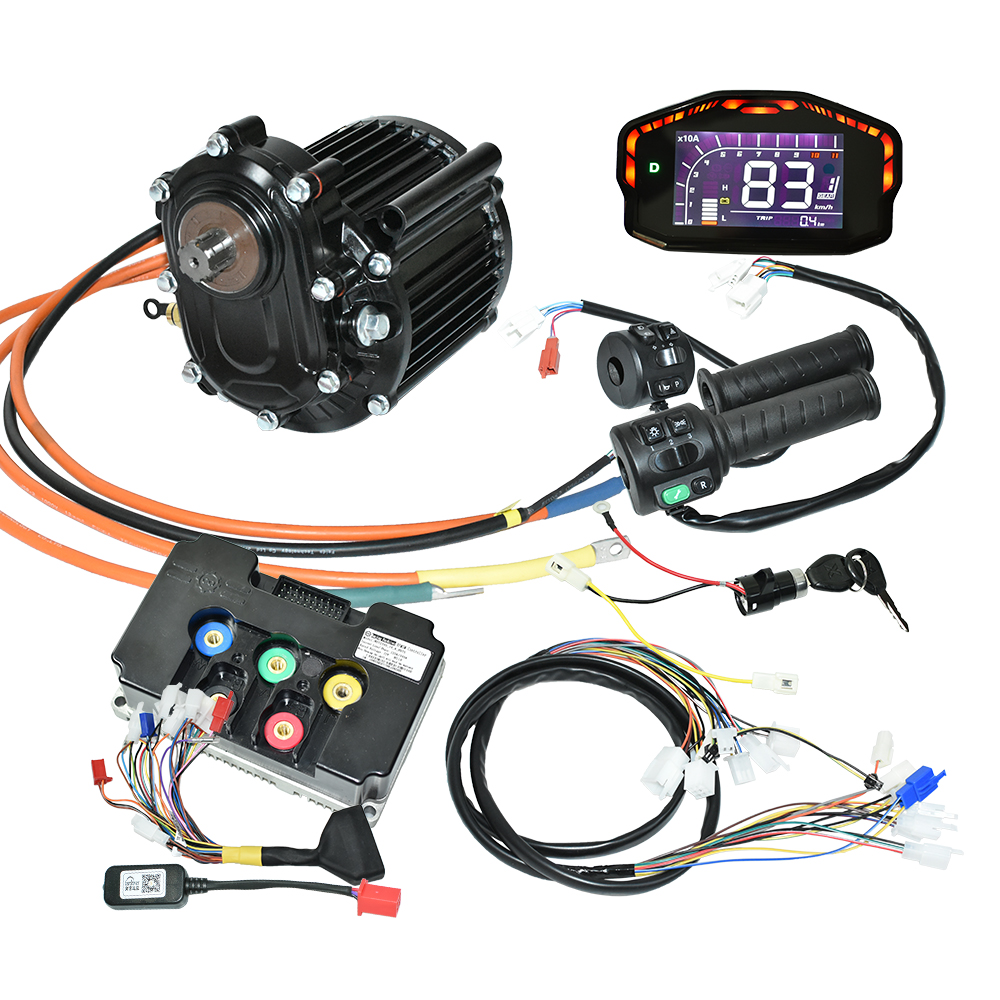

* Flexible Adaptability: Supports Hall sensor feedback and is compatible with mainstream controllers such as Fardriver. It enables regenerative braking and

multi-speed adjustment (economy/sport modes), and is compatible with wheels from 12-14 inches, meeting the modification needs of various vehicle models.

Use Scenarios

* High-Performance E-Bikes: Particularly suitable for mountain e-bikes or load-carrying commuters, its strong torque ensures ample power for climbing hills and

carrying loads (≤150kg), making it suitable for both urban commuting and outdoor cycling.

* Light Electric Motorcycles: As the power source for short-distance urban commuting, it balances speed and range. When equipped with a 72V battery, it can travel

80-100km on a single charge, meeting daily commuting needs.

* Low-Speed Electric Tricycles: For short-distance freight transport and community shuttles, its high torque and durability support loads of over 300kg, while

maintaining low maintenance costs, making it suitable for large-scale operations.
