SR85TX

Thru-axle inner rotor 36v 250w hub motor for electric bike

  • Position::rear
  • Dropout::142mm
  • Brake Type::V/ Disk brake
  • Rated Voltage::36V/48V
  • Rated Power::250W
  • Max Speed::32KM/H
  • Max Torque::30N.m
  • Efficiency::≥80%
  • Weight::2kg
  • Wheel Size::16-28"
  • Spoke Items::36H-13G
  • Freewheel::8-10S cassette
  • Noise Grade::≤55DB
  • IP Grade::IP65
  • Product Details

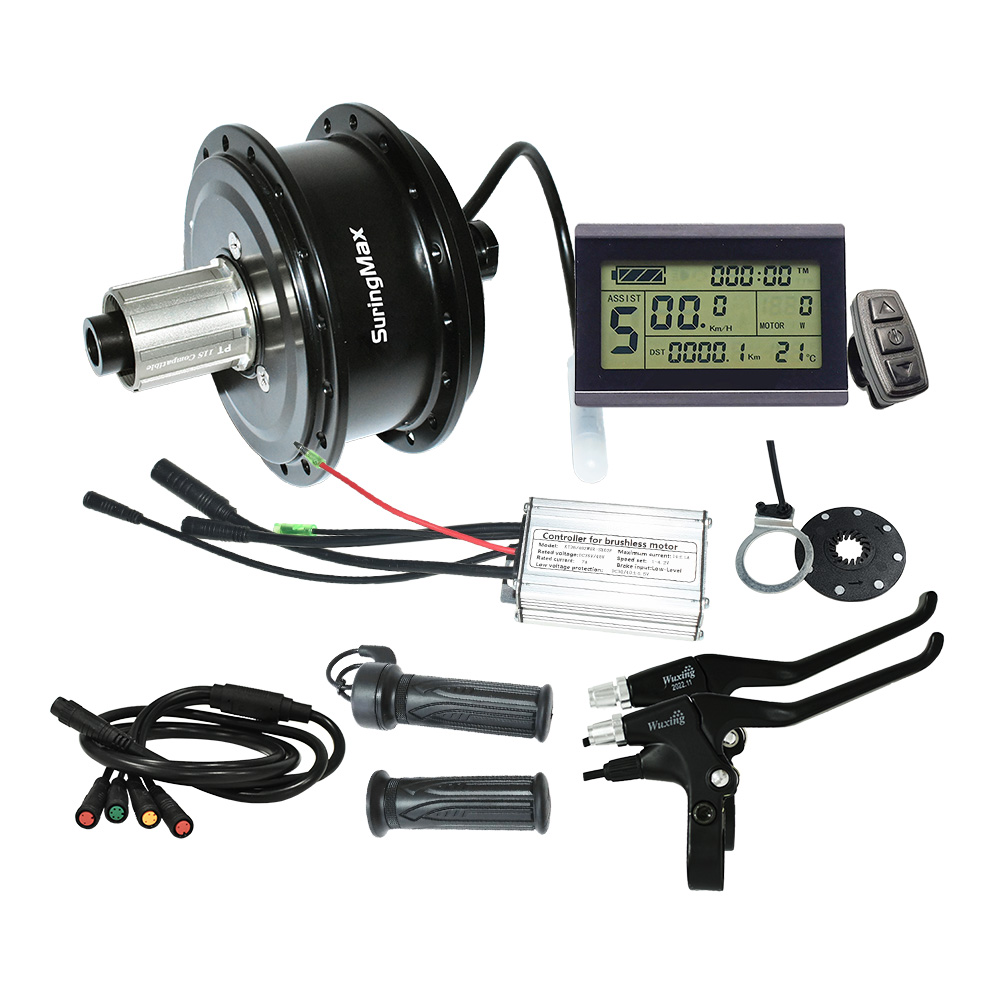

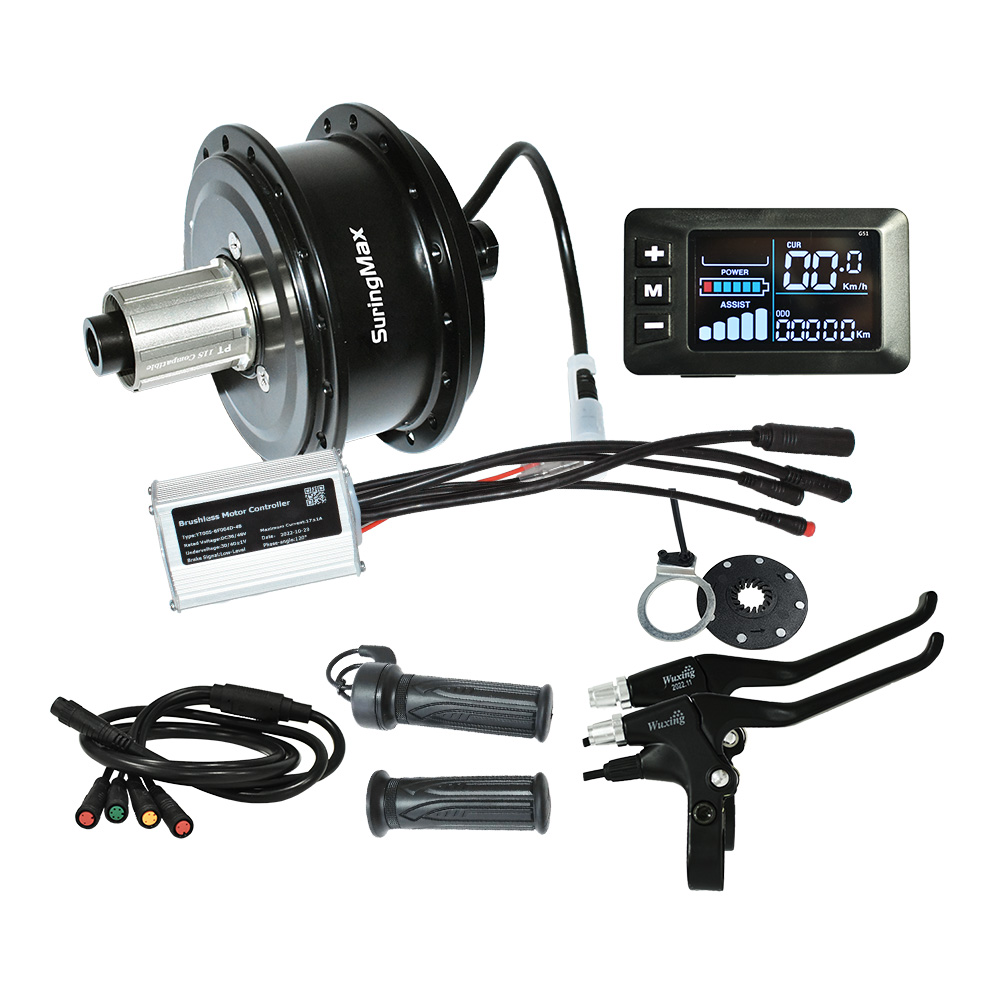

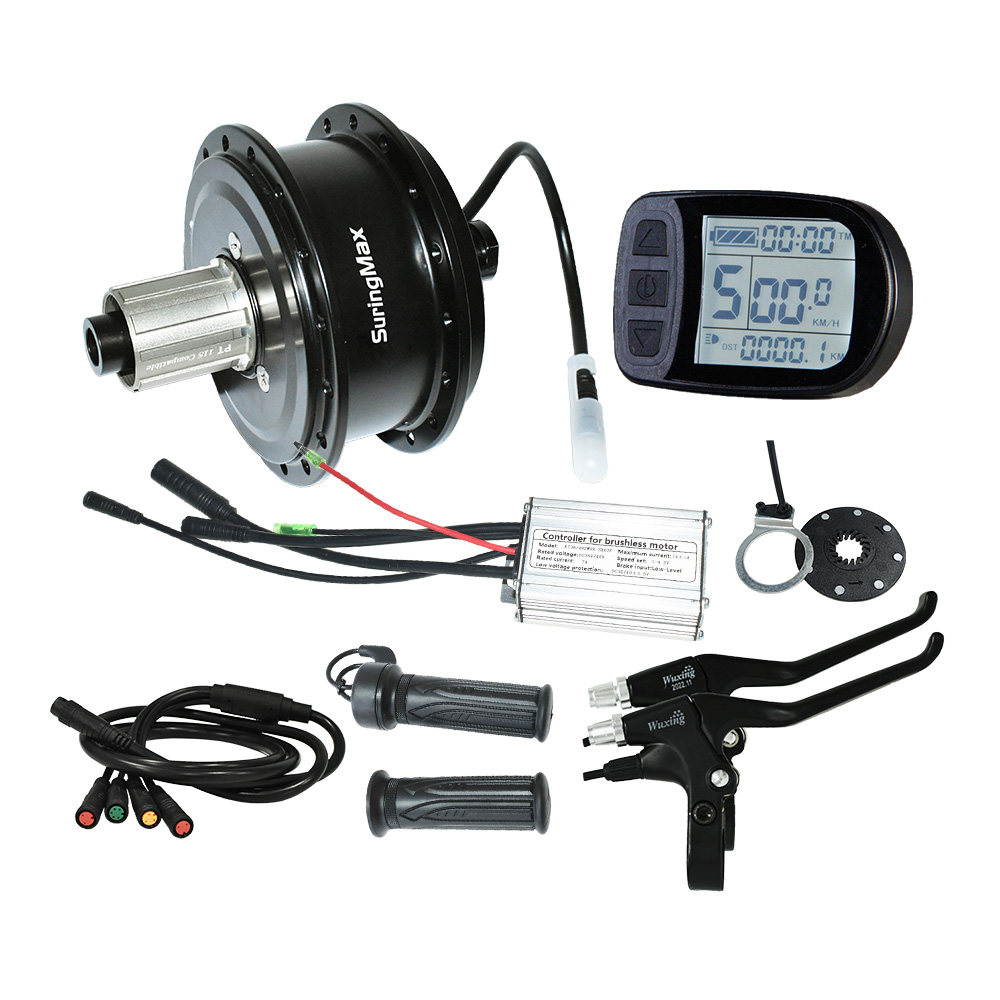

    AKM ebike conversion kit 250w 36v 48V thru axle electric bike 250 watt hub motor conversion gravel road ebike bike upgrade kits


    MOTOR 36V 250W double gear brushless hub motor, Waterproof 9 pins of motor cable
    Rim16-29'' rim and spokes assemble as default
    Batterylithium-ion battery, All battery including fuse and BMS
    Controller36v 14a/17a standarded square wave or sine wave controller for choose
    PAS8/10/12 magnets PAS, Torque sensor for optional
    DisplayLED /LCD Display for option
    ThrottleThumb throttle/Twist throttle for option
    BrakingE-brakes levers OR E-brake sensor for motor power cut off
    wiringWaterproof harness or regular connection(Bullet/PP30 for motor and JST/DJ2.8 for other electric parts)
