SR250D

Ebike front rear electric bicycle e bike parts 36v 250W 350w hub motor conversion kit

  • Position::Front/Rear
  • Dropout::100mm/135mm/138mm
  • Brake Type::V/Disc
  • Rated Voltage::24V/36V/48V
  • Rated Power::250W/300W
  • Max Speed::40km/h
  • Max Torque::38Nm
  • Reduction Ratio::1:4.4
  • Efficiency::≥ 80%
  • Weight::2.8kg
  • Wheel Size::16”-29”
  • Spoke::36H-12G/13G
  • Freewheel::6-7S / Cassette 8-10S
  • Noise Grade::≤ 55B
  • IP Grade::IP54
  • Product Details

    16 20 24 26 28 Inch Diy electric e bicycle 36v 250w ebike hub motor conversion kit

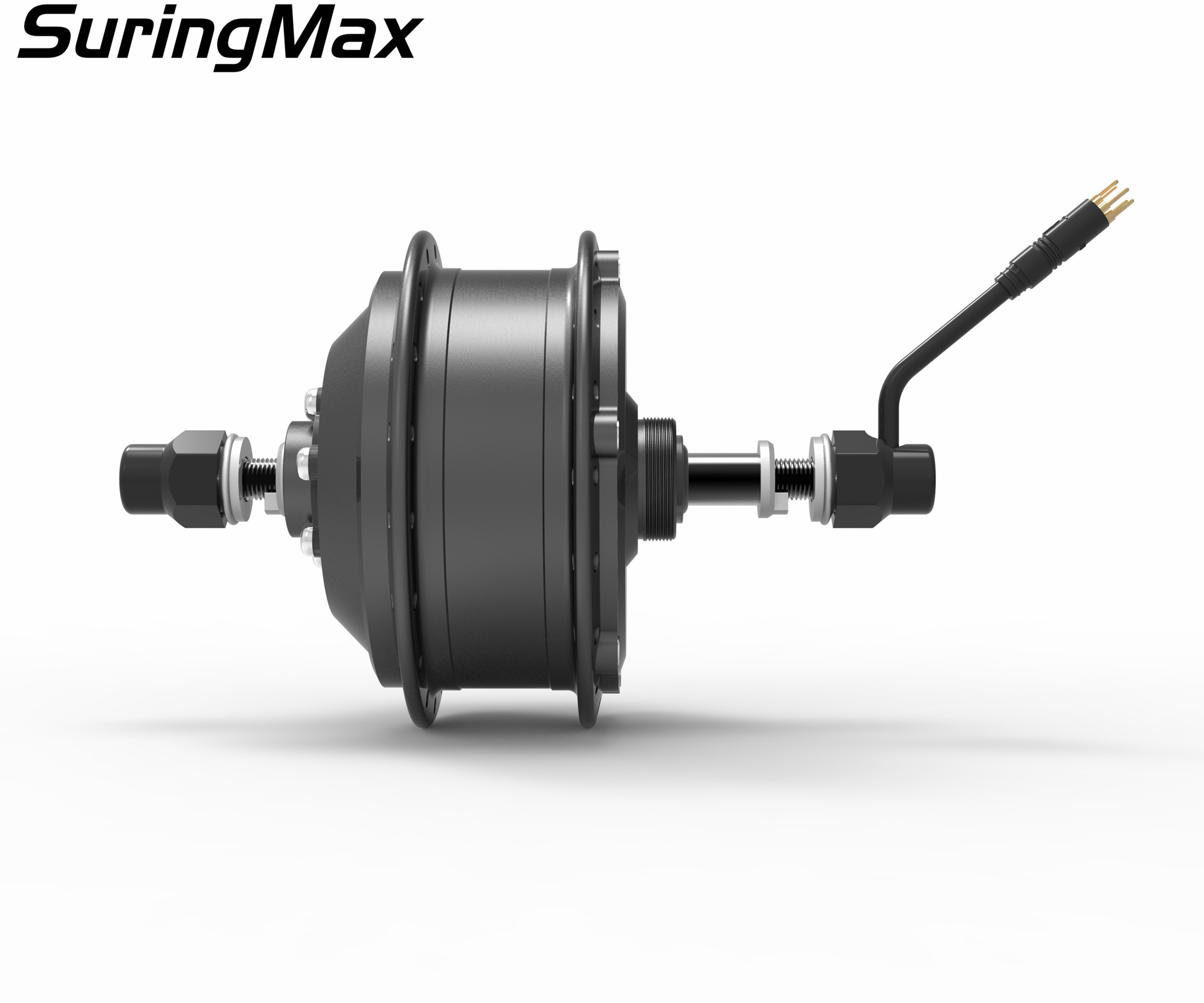

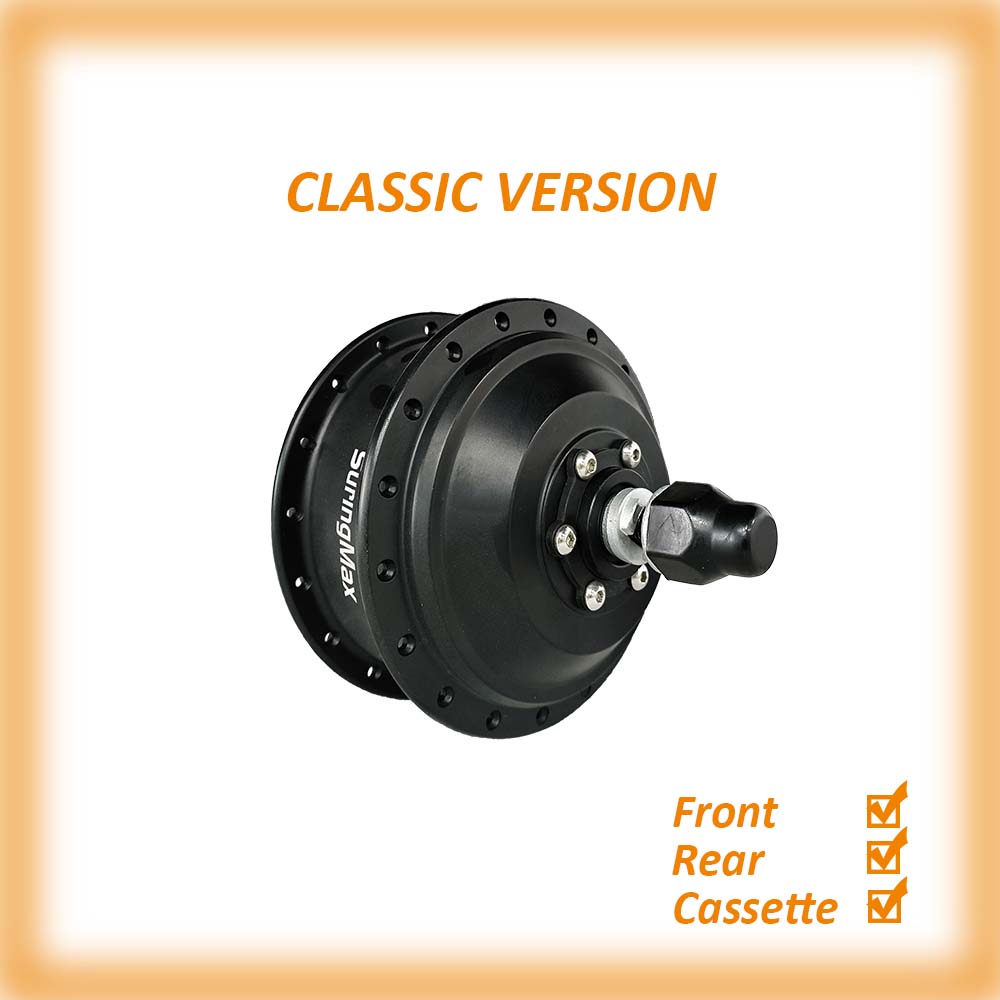

    MOTOR 36V 250W double gear brushless hub motor, Waterproof 9 pins of motor cable
    Rim16-29'' rim and spokes assemble as default
    Batterylithium-ion battery, All battery including fuse and BMS
    Controller36v 14a/17a standarded square wave or sine wave controller for choose
    PAS8/10/12 magnets PAS, Torque sensor for optional
    DisplayLED /LCD Display for option
    ThrottleThumb throttle/Twist throttle for option
    BrakingE-brakes levers OR E-brake sensor for motor power cut off
    wiringWaterproof harness or regular connection(Bullet/PP30 for motor and JST/DJ2.8 for other electric parts)
