SRFAT350D

Ebike front rear electric bicycle e bike parts 36v 250W 350w fat hub motor conversion kit

  • Position::Rear
  • Dropout::175mm/190mm
  • Brake Type::V/Disc
  • Rated Voltage::24V/36V/48V
  • Rated Power::250W/350W
  • Max Speed::40km/h
  • Max Torque::36Nm
  • Reduction Ratio::1:4.4
  • Efficiency::≥ 80%
  • Weight::3kg
  • Wheel Size::20"-26" fat rim
  • Spoke::36H-12G/13G
  • Freewheel::Single/7S
  • Noise Grade::≤ 55DB
  • IP Grade::IP54
  • Product Details

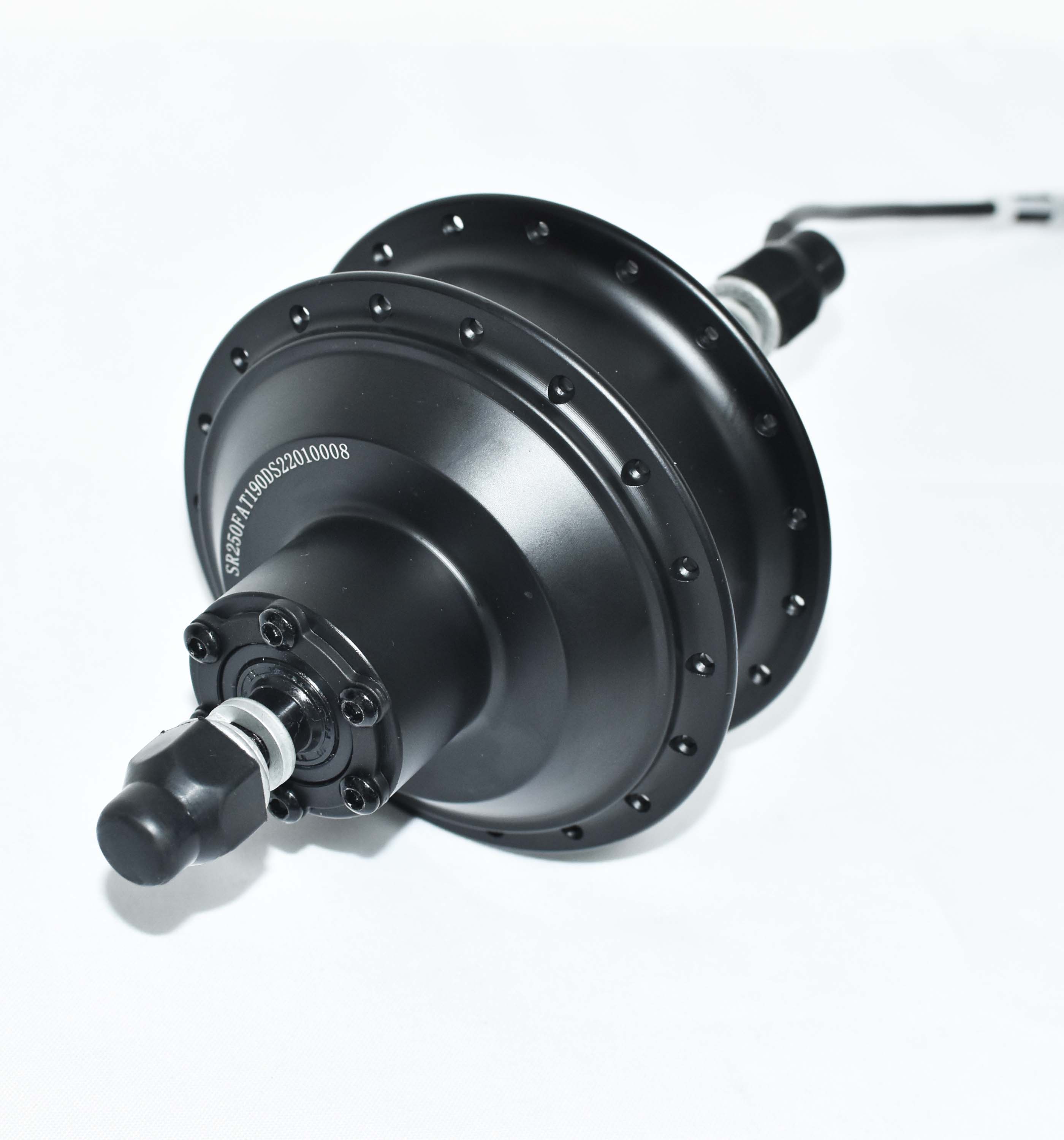

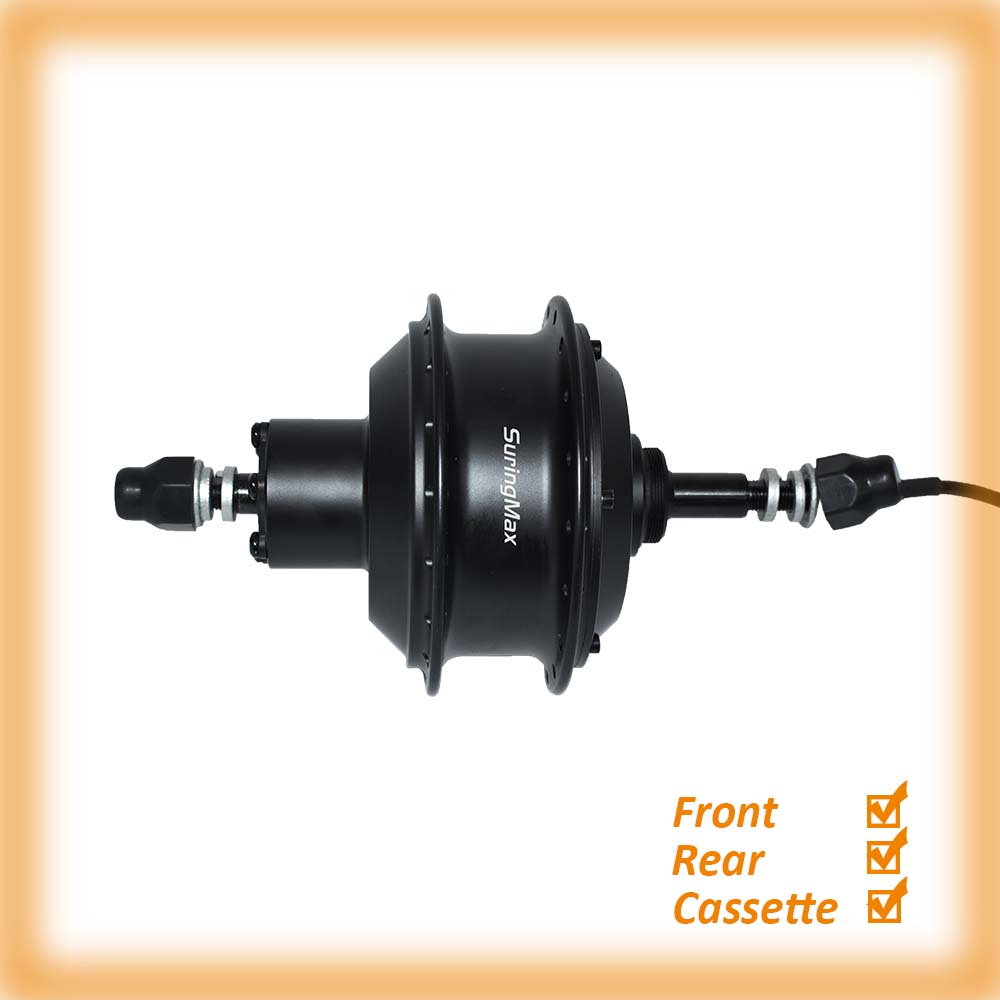

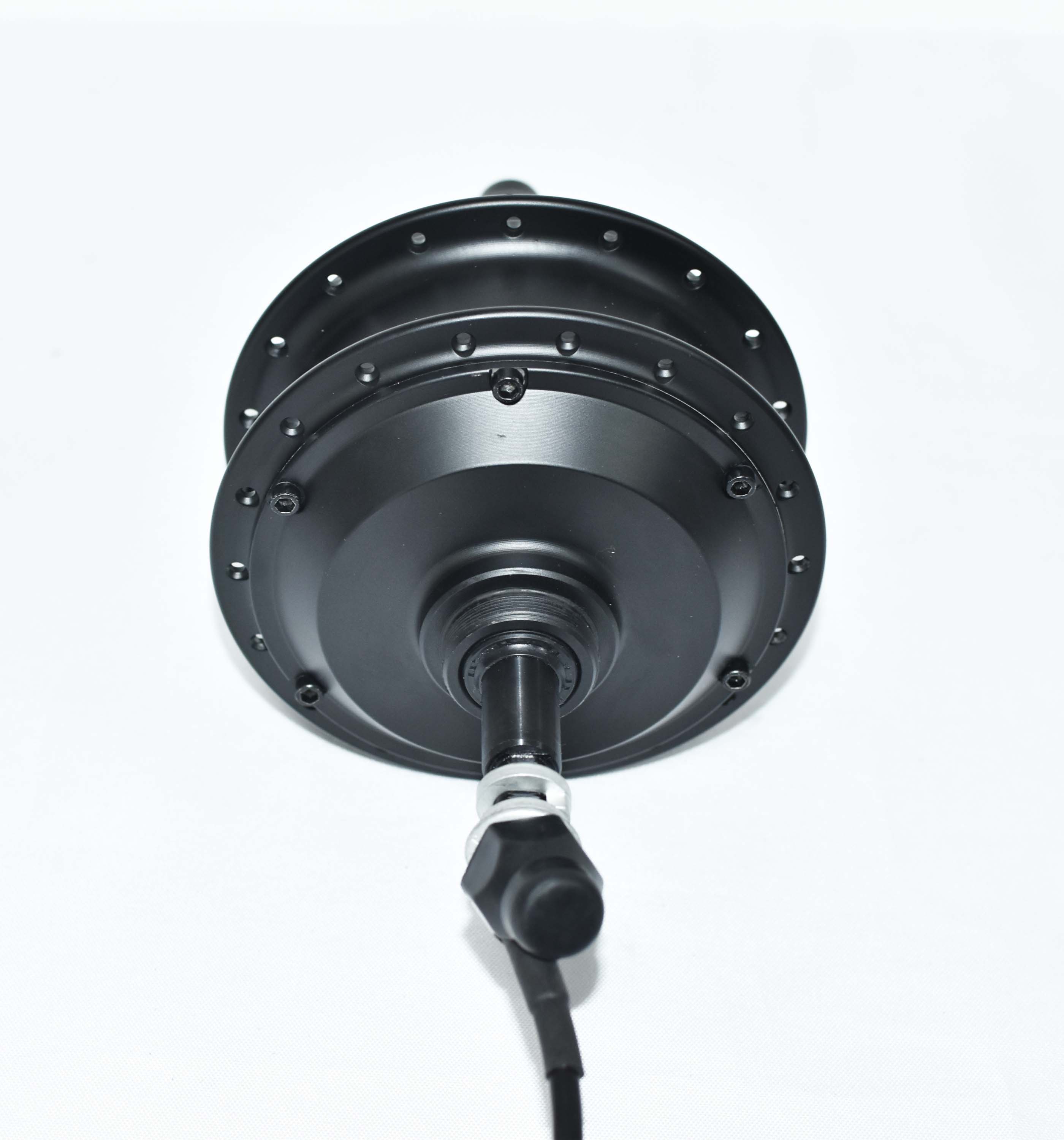

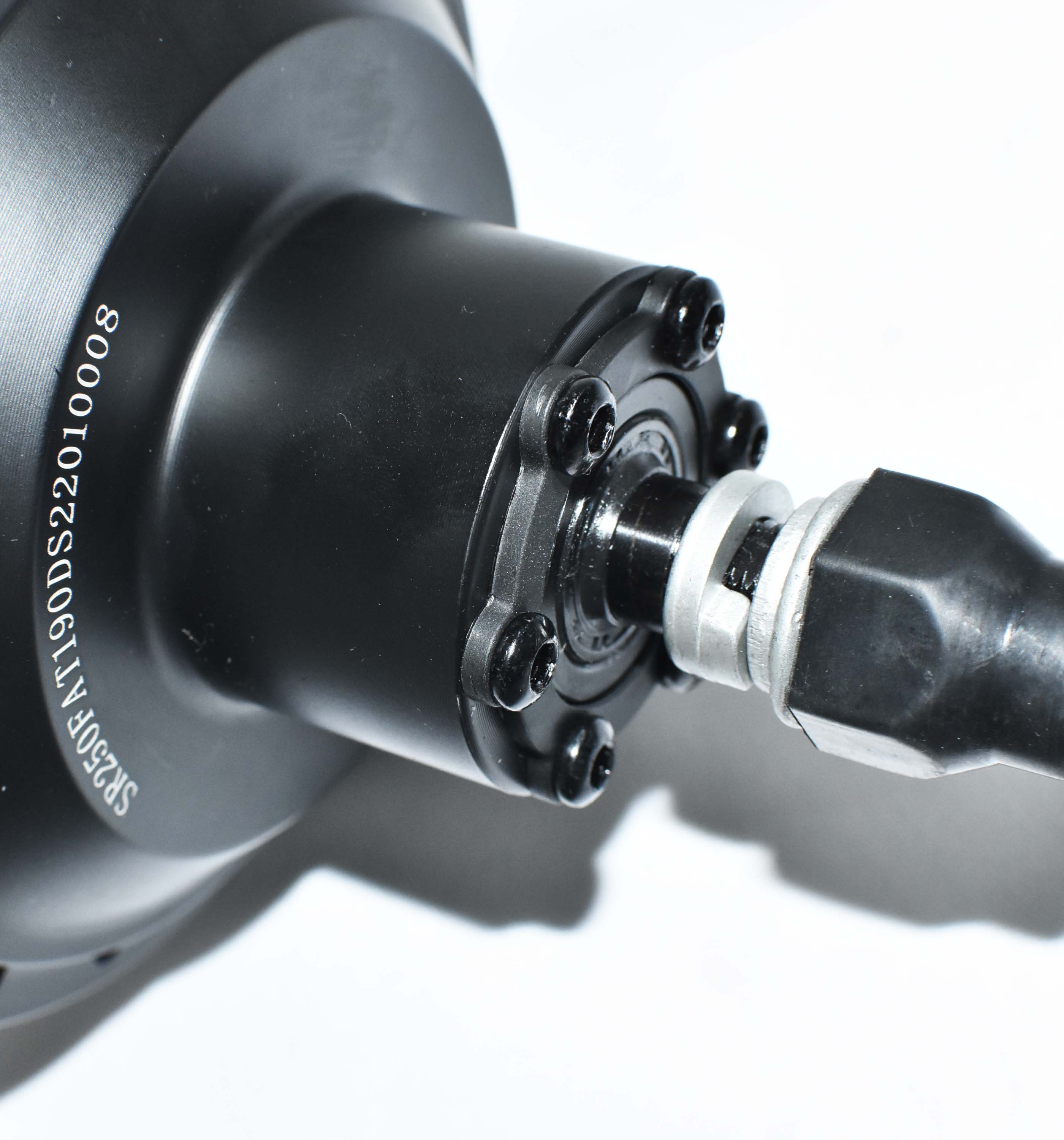

    250w 350w fat tire electric bike hub motor


    MOTOR Gear brushless hub motor, Waterproof 9 pins of motor cable
    Rim20-26'' fat rim and spokes assemble as default
    Batterylithium-ion battery, All battery including fuse and BMS
    Controller36V/48V 14A/17A standarded square wave or sine wave controller for choose
    PAS8/10/12 magnets PAS, Torque sensor for optional
    DisplayLED /LCD Display for option
    ThrottleThumb throttle/Twist throttle for option
    BrakingE-brakes levers OR E-brake sensor for motor power cut off
