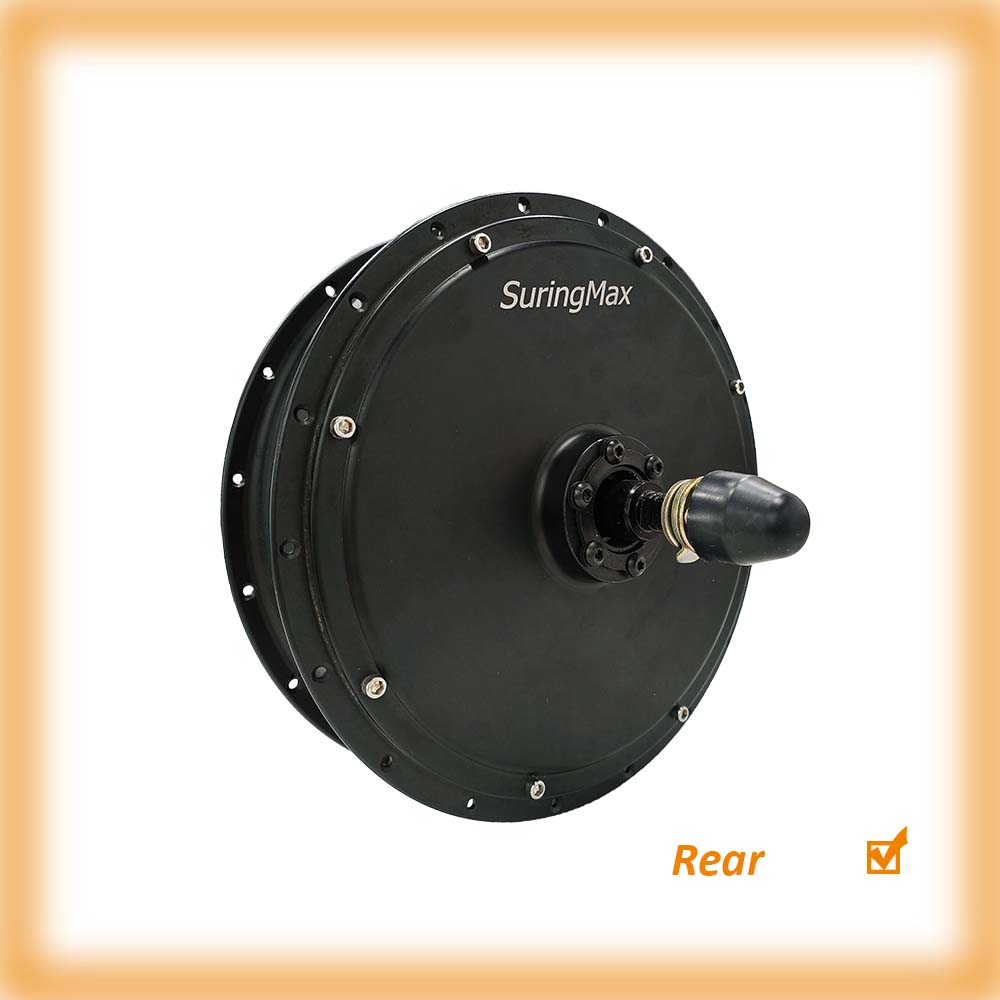

SR45HDR-3000W

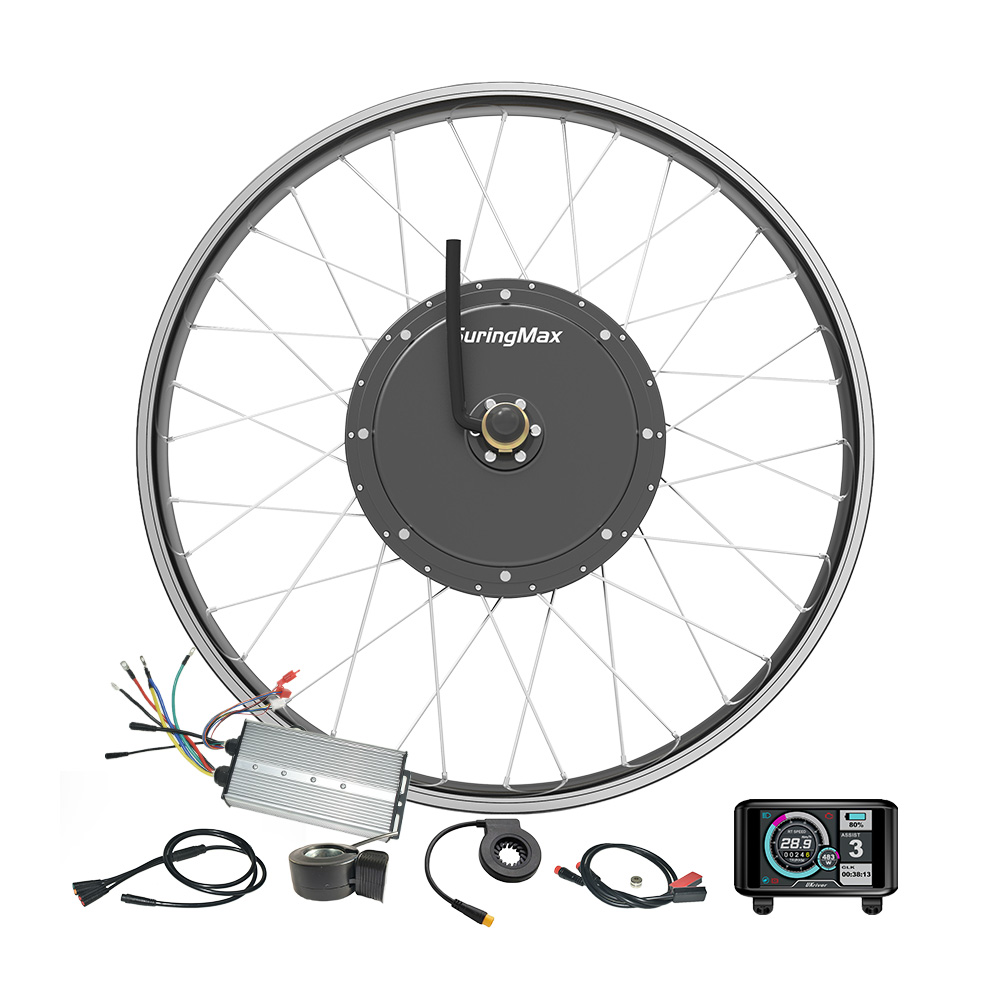

3000w Gearless 45H Magnets electric bicycle conversion hub motor kit

  • Position::Rear
  • Dropout::135mm/142mm/150mm
  • Brake Type::Disc brake
  • Rated Voltage::48V/60V/72V
  • Rated Power::3000W
  • Max Speed::100km/h
  • Max Torque::140Nm
  • Efficiency::≥ 82%
  • Weight::9.5kg
  • Wheel Size::20"-29" bicycle rim, 17"-21" motorcycle rim
  • Spoke Items::36H-10G
  • Freewheel::single/ 6S-7S
  • Noise Grade::≤ 55DB
  • IP Grade::IP54
  • Product Details

    72v 3000w e bike motorcycle hub motor electric mountain bicycle conversion part

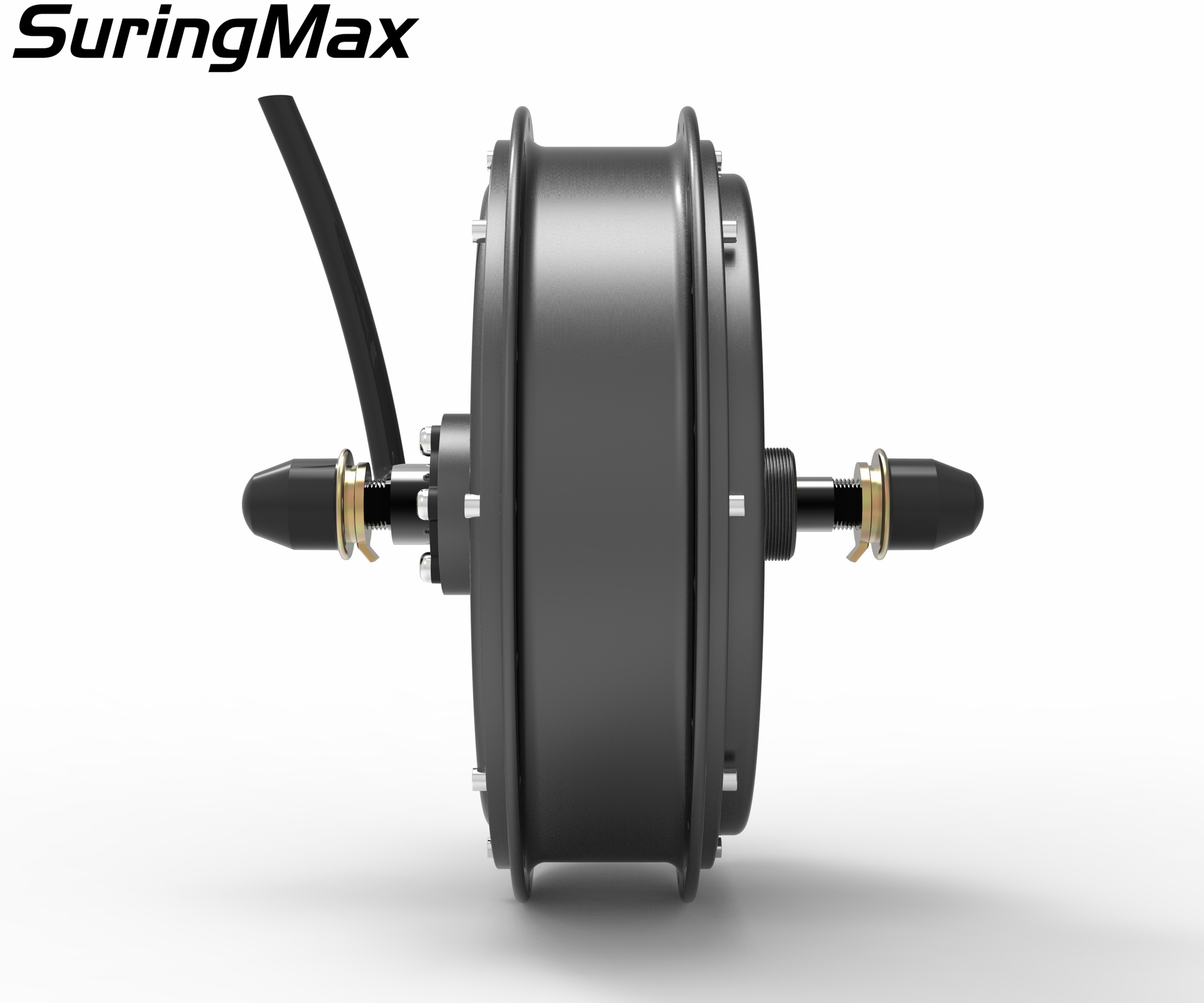

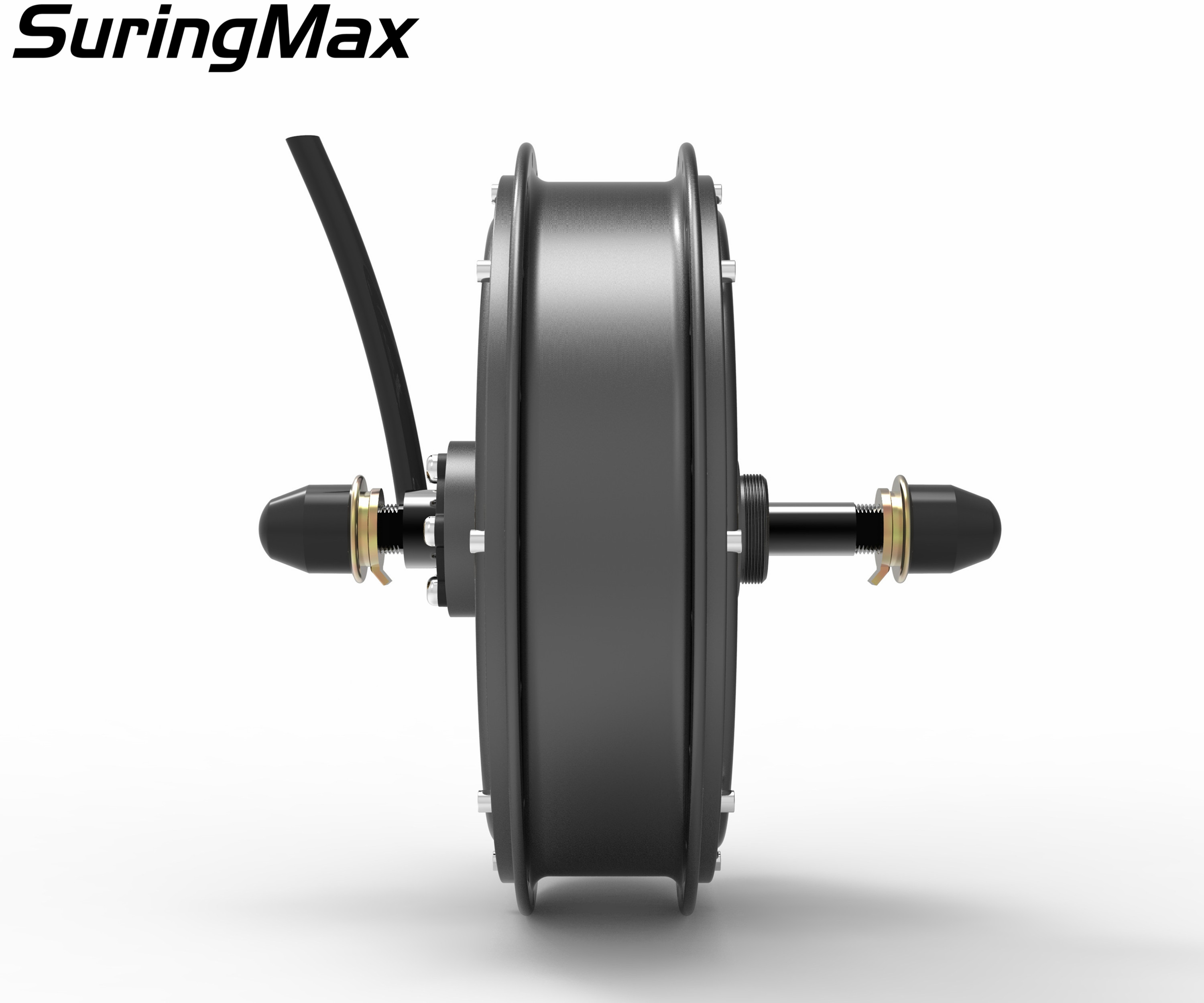

    MOTOR Gearless brushless hub motor
    Rim20-29'' rim and spokes assemble as default
    Batterylithium-ion battery, All battery including fuse and BMS
    Controller72V 85A standarded square wave or sine wave controller for choose
    PAS8/10/12 magnets PAS, Torque sensor for optional
    DisplayLED /LCD Display for option
    ThrottleThumb throttle/Twist throttle for option
    BrakingE-brakes levers OR E-brake sensor for motor power cut off
